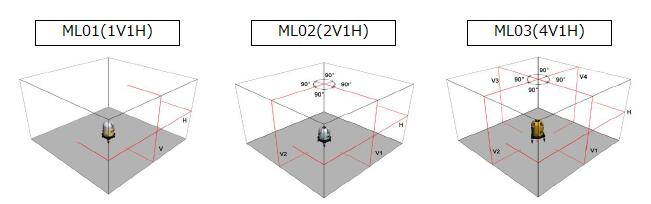

Contact Us| Laser Lines | 1V1H3D | 2V1H3D | 4V1H3D |
| Accuracy | ± 1mm/5m or 40sec | ||
| Leveling theory | Gravity pendulum | ||
| Dimension | 185x120/mm(Dia) | ||
| Weight(Laser only) | 1.0kg | ||
| Battery type | 3 x AA Battery Alkaline | ||
| Other power supply | AC/DC power supply/standard | ||
| Continuous working | 8h | 7h | 6h |
| Leveling range | +/-3° | ||
| Working distance | 10m/50m with detector | ||
| Diode power | 5mw laser diode | ||
| Output power | Less than 1mw, laser class II | ||
| Laser source | 635nm Semiconductor Diode(Down point 650nm) | ||

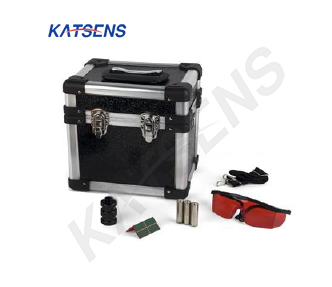

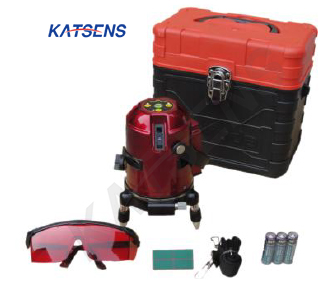

| Packaging | Standard carry case(4in1) or if Aluminum carry case(4 in 1) +$8/pcs | ||
