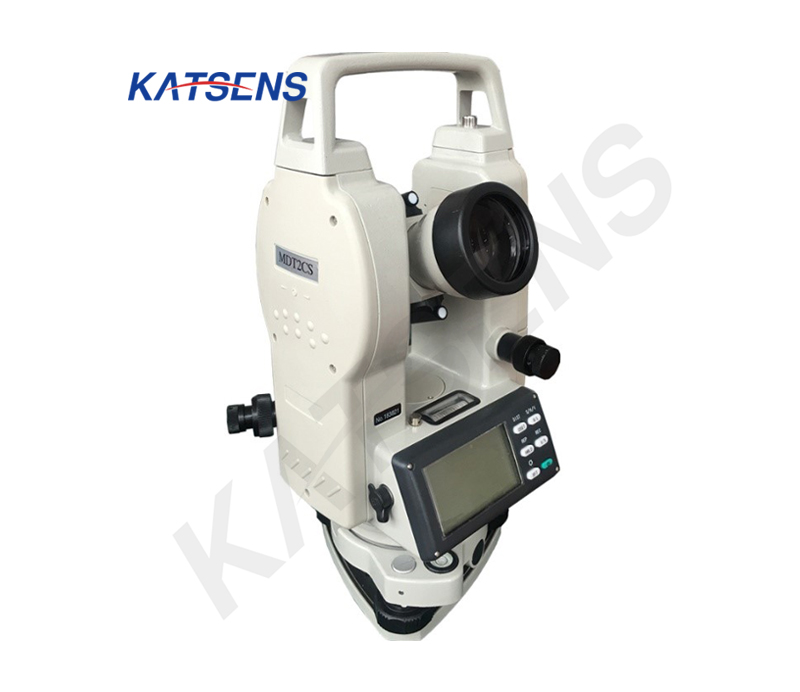

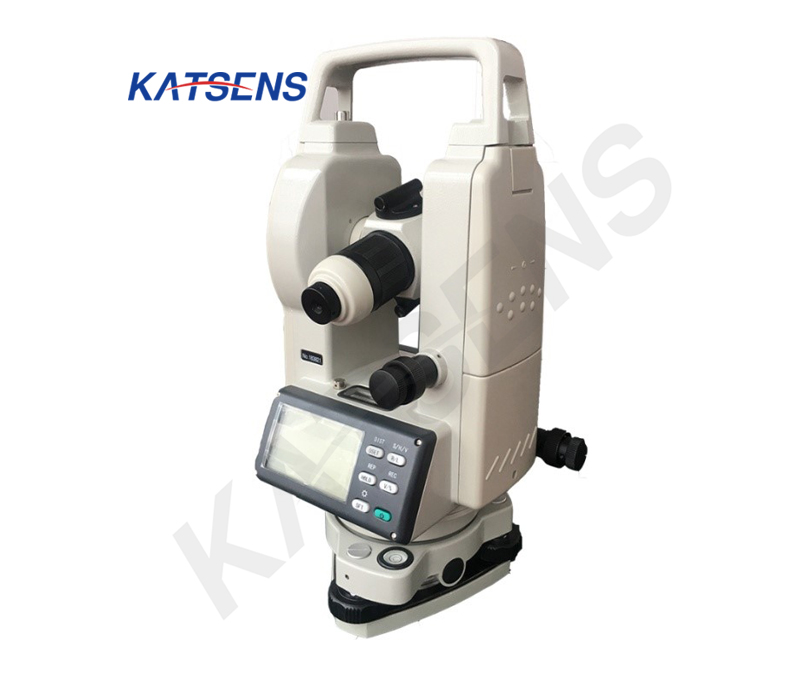

Contact Us| KTET01 Electronic Theodolite | |||||||||
| Telescope | |||||||||
| Length of Telescope | 156mm | ||||||||
| Image | Erect | ||||||||
| Clear Objective Aperture | 45mm | ||||||||
| Magnification | 30X | ||||||||
| Angle of Field of View | 1°30' | ||||||||
| Resolving Power | 3.5" | ||||||||
| Shortest Focuing Distance | 1.3m | ||||||||
| Stadia Multiplying Constant | 100 | ||||||||
| Stadia Additive Constant | 0 | ||||||||
| Angle Measurment | |||||||||
| Method | Raster Incremental/Absolutely code | ||||||||
| Detecting | Horizontal:Double Vertical:Single | ||||||||
| Minimum Reading | 1"/5" | ||||||||
| Accuracy | 2" | ||||||||
| Display Panel | Double Face | ||||||||
| Compensator | |||||||||
| Tilt Senor | Yes | ||||||||
| Range of Compensator | ±3' | ||||||||
| Output Interface | |||||||||
| Communication Standard | RS232C | ||||||||
| EDM Interface | YES | ||||||||
| Date Output Interface | YES | ||||||||
| Memory Points | 500 Points | ||||||||
| Plummet | |||||||||
| Accuracy of Plummet | ±1mm | ||||||||
| Base | |||||||||
| Base Model | Separated | ||||||||
| Power | |||||||||
| Battery | Chargeable battery/four AA alkaline | ||||||||
| Working Time | About 20 Hours | ||||||||
| Other | |||||||||
| Temperature | -20°C~+50°C | ||||||||
